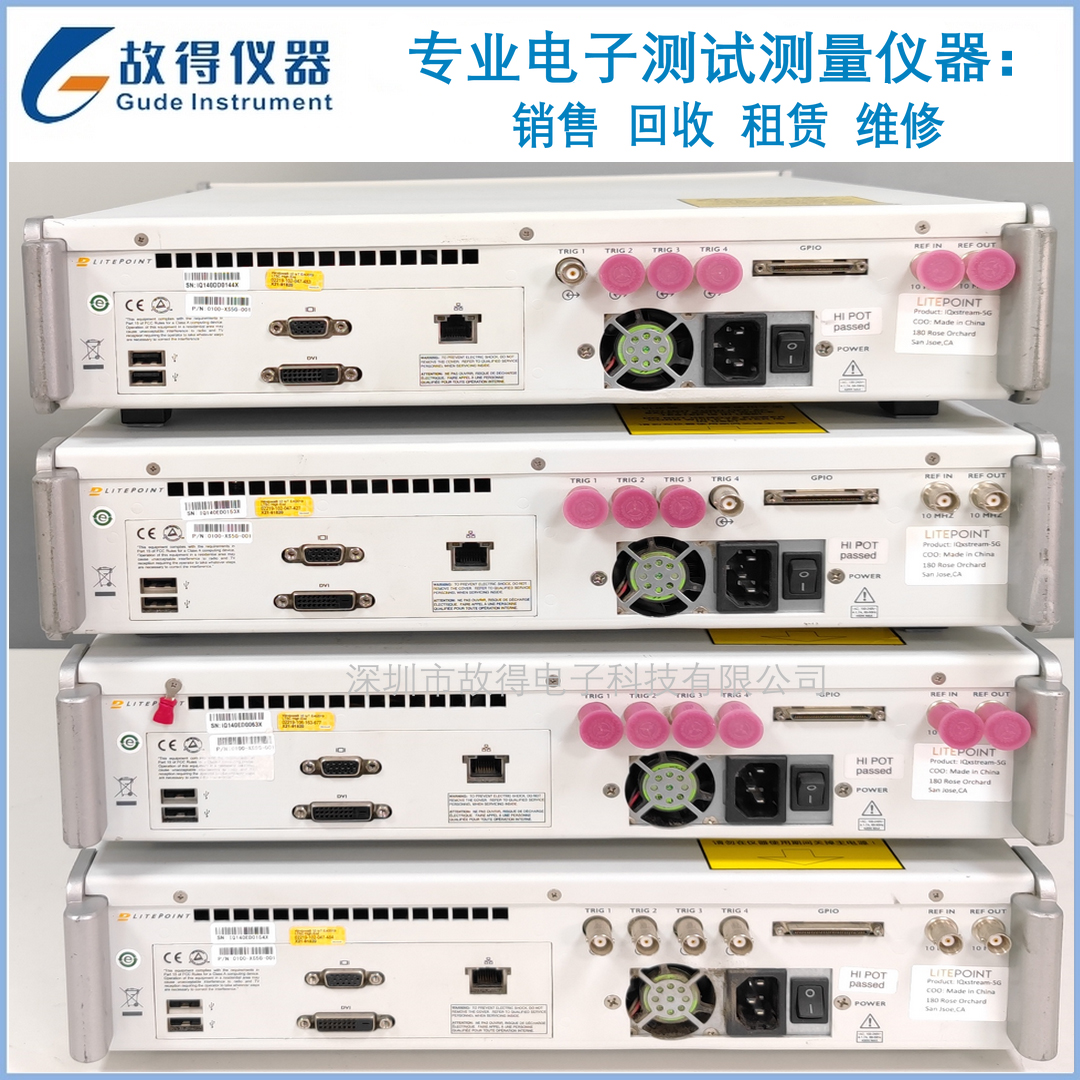

IQxstream-5G 5G FR1 Sub-6GHz Cellular Tester
IQxstream-5G 5G FR1 Sub-6 GHz Cellular Tester
The IQxstream-5G™ is a compact multi-DUT manufacturing test solution with 200 MHz continuous bandwidth for physical layer testing in the 5G NR Sub-6 GHz frequency range.
This high-performance, comprehensive non-signaling tester is ideally suited for 5G user equipment (UE) and small cell testing across multiple cellular technologies including 2G, 3G, 4G and 5G.
分享
描述
- Integrated platform supporting 5G FR1, legacy cellular and connectivity technologies
- Support for all 5G FR1 Sub-6GHz frequencies in the 400 MHz - 6000 MHz range
- Support for C-V2X, LTE TDD/FDD, LAA and other legacy 2G/3G technologies
- Software upgradeable to support wireless technologies including Wi-Fi (802.11a/ac/ah/ax/b/g/n/p/af), Bluetooth, Zigbee, NB-IoT, and popular navigation technologies
- Superior performance designed for chipset development and testing
- Excellent EVM performance of up to -48 dB at 100 MHz CC
- Supports 200 MHz continuous bandwidth for 5G NR carrier aggregation (CA) signal analysis
- Wide VSG dynamic range with maximum output power up to +5 dBm
- Flexible setup with higher production throughput
- Rapid deployment with minimal setup time
- Direct connection to eight bi-directional factory-calibrated ports
- Dual-module architecture enables efficient parallel testing of multiple DUTs
- Multi-port scalability when connected to IQ3101 switch modules
- Turnkey solution for multi-DUT manufacturing testing
- Intuitive GUI simplifies test parameter modification and provides visual analysis of test results
- Calibration and verification software IQfact5G enables extensive and faster data logging and analysis
- IQfact5G combines with asynchronous parallel testing to maximize multi-DUT efficiency
5G NR Sub-6 GHz technology options
- 5G Below 6 GHz
- 5G Small Cell
- LTE TDD/FDD
- TD-SDCMA
- W-CDMA HSPA / HSPA+
- GSM / Edge
- CDMA / CDMA2000
- LTE IoT UE categories Cat 1, Cat 0 (Cat M1) and Cat NB1 (NB-IoT)
- LTE Small Cell (Femtocell, Picocell)
- Wireless Networks, 802.11ax
- Wireless Networks, 802.11ac
- Wi-Fi, 802.11a/b/g/j/n/p
- Wireless Networking, 802.11af
- Wireless Networking, 802.11ah
- Bluetooth, Classic (1.x, 2.x, 3.0), Low Power (4.0, 4.1, 4.2), and Bluetooth 5.x
- DECT
- LPWAN, Sigfox / LoRa
- Zigbee, Z-Wave and Wi-SUN
- Navigation: GPS, GLONASS, Compass and Galileo
When and where to test with IQxstream-5G?
For small cellular or mobile devices, such as smartphones, tablets and laptops or IoT devices
